C8000 - Feature Set

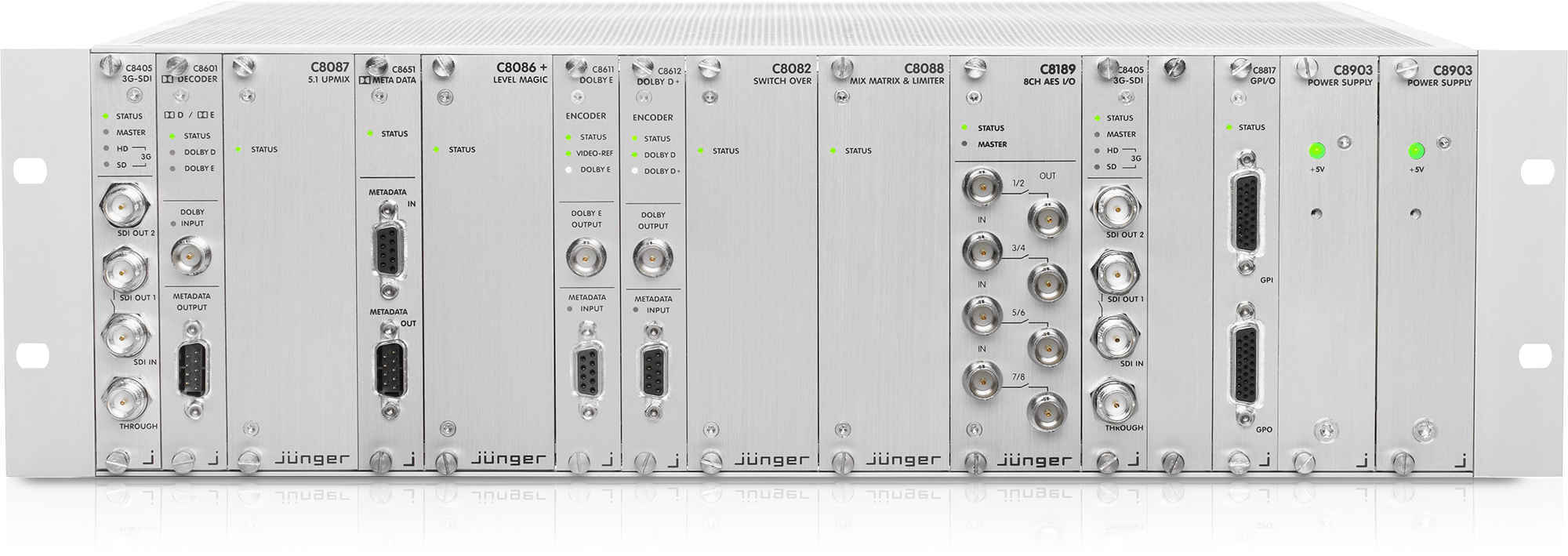

For a totally custom built approach to digital audio processing, the C8000 modular system offers a wide range of hardware options including frames, I/O cards and processing cards that can be mixed and matched to create a unique solution for managing loudness and dynamics along with comprehensive Dolby® support.

    The concept behind the C8000 modular system is total flexibility and adaptability for all digital audio processing applications. Choose a frame and then select only the modules with the required functionality to create a truly bespoke system.

    C8000 - Feature Set
    C8000 - Feature Set

    Key Features

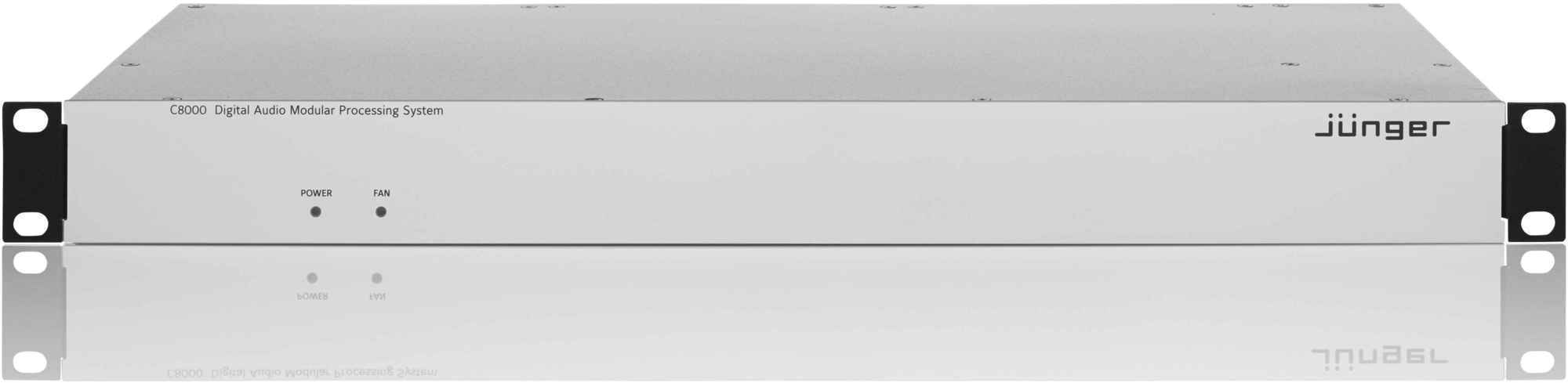

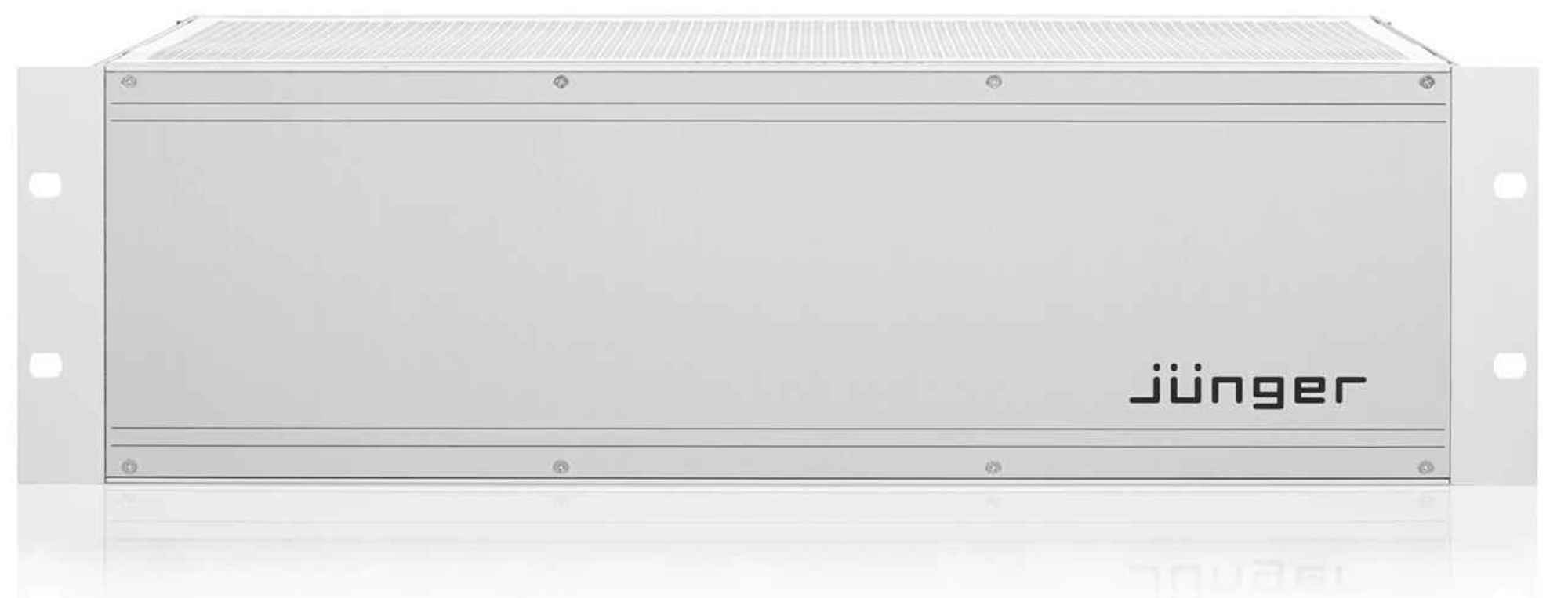

    • 19” frame based fully modular system (1Ru or 3RU frames)
    • Wide range of audio processing functionality
    • Extensive support for Dolby® decoding and encoding
    • Network based control, management and measurement

    More Features:

    • Capacity from 6 to 35 cards depending on frame selected
    • SDI interface for embedding/de-embedding of audio, Metadata transport and lip sync control
    • Network based automation via Ember+ protocol
    • External control via GPI/O’s (max. 127)
    • Redundant PSU and power-fail bypass relays

    Versions & Options

    • Integration with broadcast automation and playout systems and software
    • Optional loudness measurement and logging (J*AM)
    • Optional SNMP integration

    Applications

    All Jünger Loudness control / - Management devices from all product lines share a neat feature: The gathered measurement data is made available for downstream measurement applications via Ethernet. Learn more about at Measurement and Logging Software Tools.

    • Jünger Application Manager - J*AM
      System: MS Windows™
      download (ZIP, 23.4 MB)
      Changelog 2.10.19.42350 (2017-08-31):

      ATTENTION!

      Before installing the J*AM / Loudness Logger software under Windows 10, please download and install the latest Sentinel dongle GUI runtime environment:

      https://supportportal.thalesgroup.com/csm?sys_kb_id=61fb0ee1dbd2e78cfe0aff3dbf9619ab&id=kb_article_view&sysparm_rank=2&sysparm_tsqueryId=29c80d7b1bd49410f2888739cd4bcb91&sysparm_article=KB0018320

      Installing the J*AM / Loudness Logger software without the environment first might lead to critical errors and blues screens!

      Changes 2.10.19.42350:

      • Fixed integration range issue in Log Analyzer

      Changes 2.10.18.41937:

      • Fixed parameter inconsistencies occurred while network interruptions
      • Added support for C8492 PM5 and C8092 PM5
      • Added support for C8702 logger version 6

      Changes 2.10.10.40638:

      • Added support for V*AP v2.0.1

    Product Brief

    Manual
