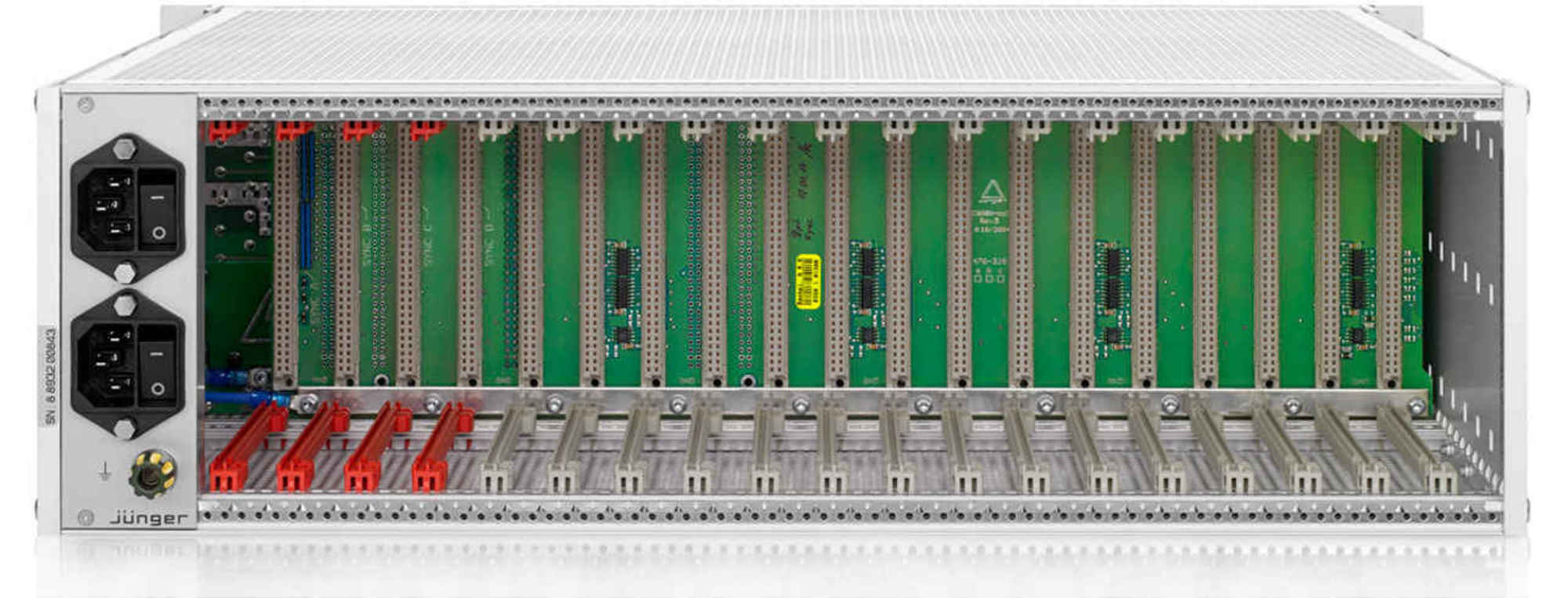

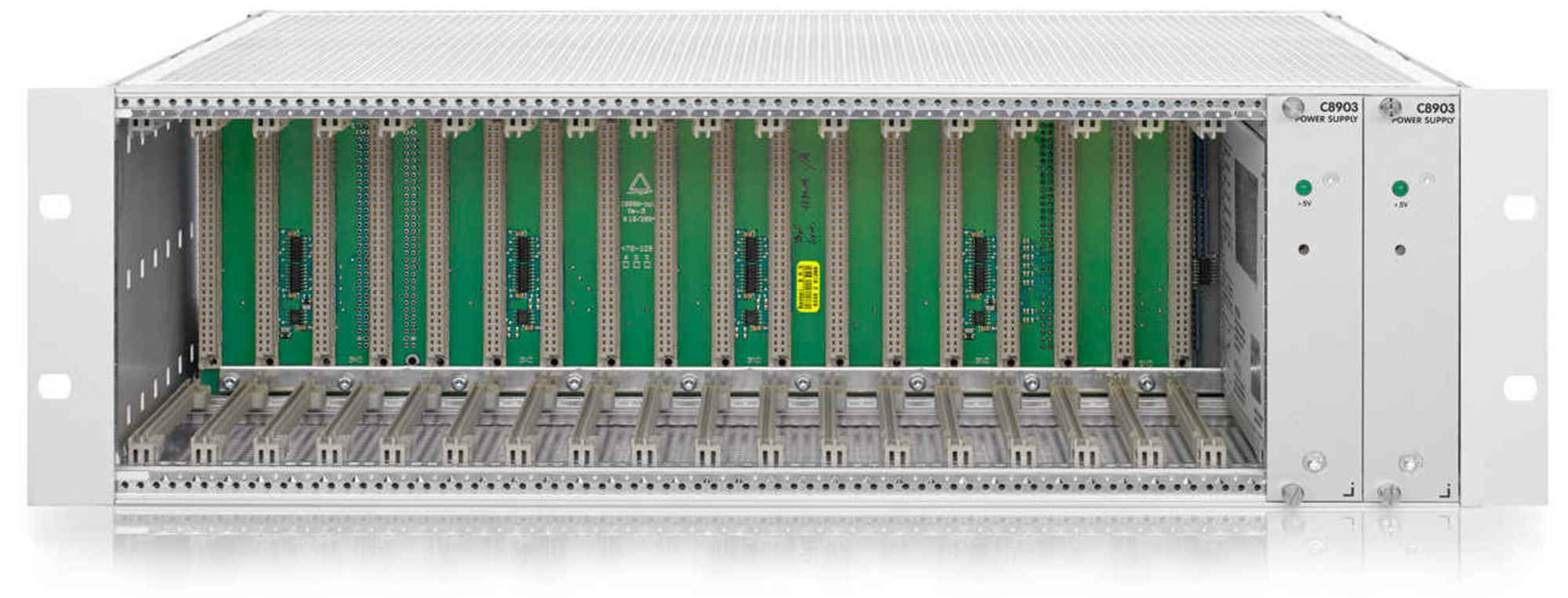

C8000 Frame 3RU 76 + 72HP

Key Features

• 19" / 3RU modular chassis, 435mm depth
• Up to 76HP (front) and 72HP (rear) space available
• Up to 37x C8000 processing, codec or interface modules
• Front or rear rack mounting
• Dual internal power supplies, IEC sockets with mains filters and power switches

Product Brief

• C8000 (PRODUCT BRIEF) download

Manual

• C8000 System - System Manual (MANUAL) download
