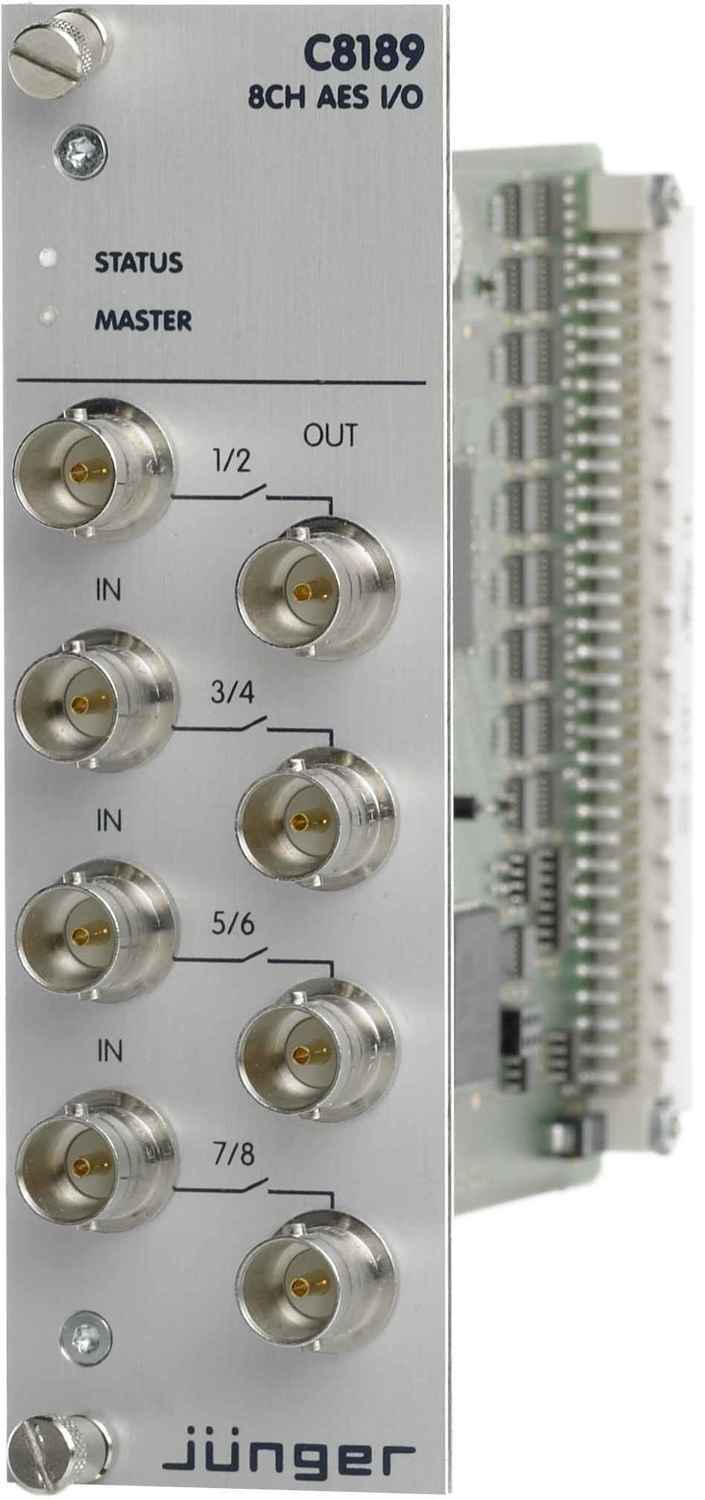

AES/EBU I/O (BNC)

The C8189 is an I/O module designed for the C8000 modular processing solution providing 4x AES EBU (8ch) I/O with Sample Rate Converters (SRC) on BNC connectors.

    Key Features

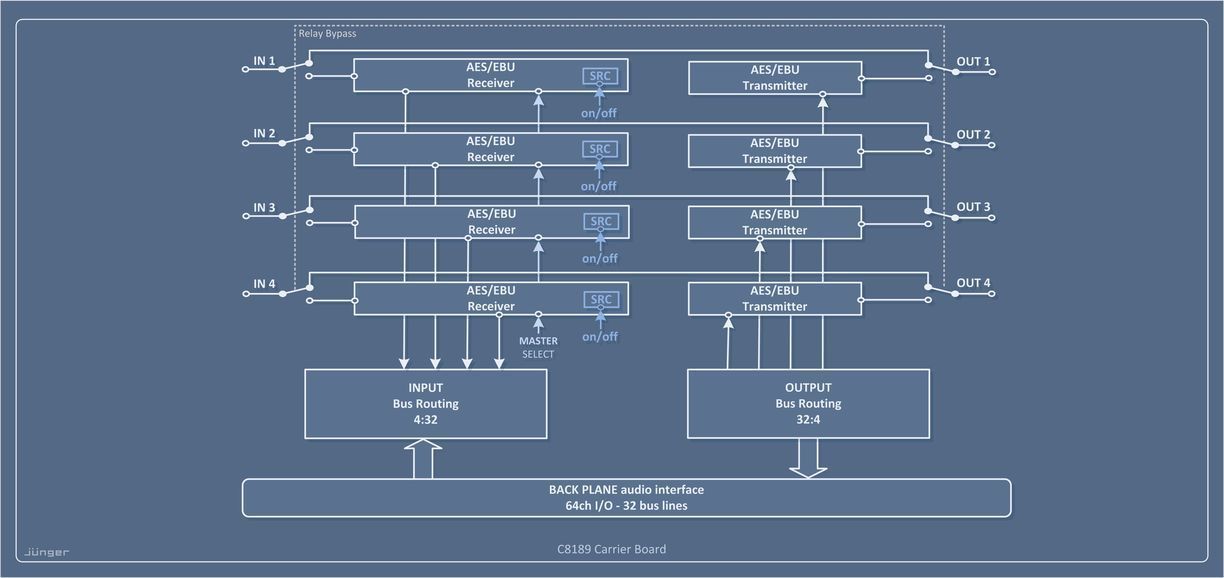

    C8189 AES/EBU (BNC) Processing Block Diagram
    C8189 AES/EBU (BNC) Processing Block Diagram
    • AES/EBU Digital Audio
    • 4x AES (stereo or 2ch) In
    • 4x AES (stereo or 2ch) Out
    • BNC Connector
    • Sample Rate Converters

    Product Brief

    Manual
