Microphone In

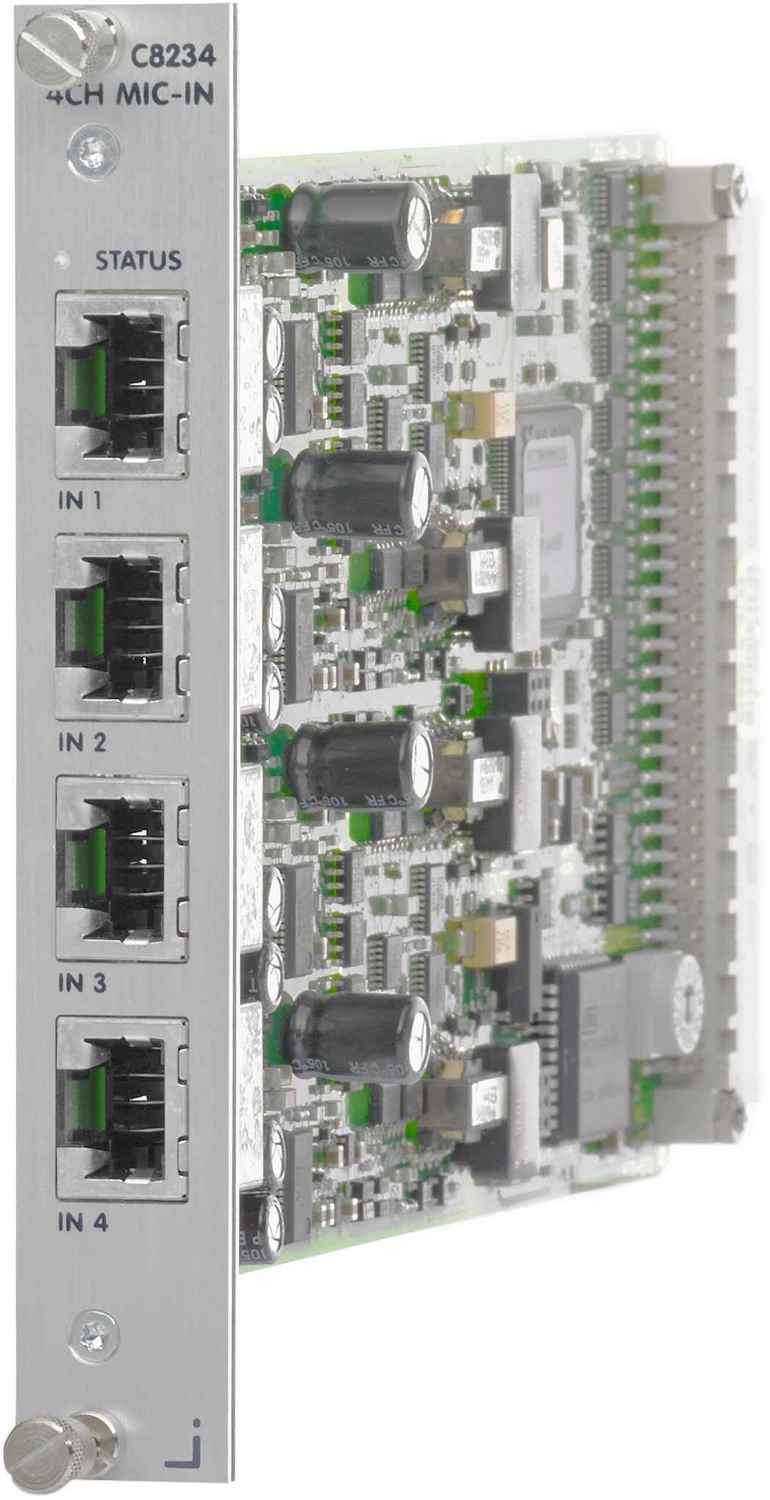

The C8234 is a Microphone module designed for the C8000 modular processing solution providing 4 high quality MIC / Line inputs.

    Key Features

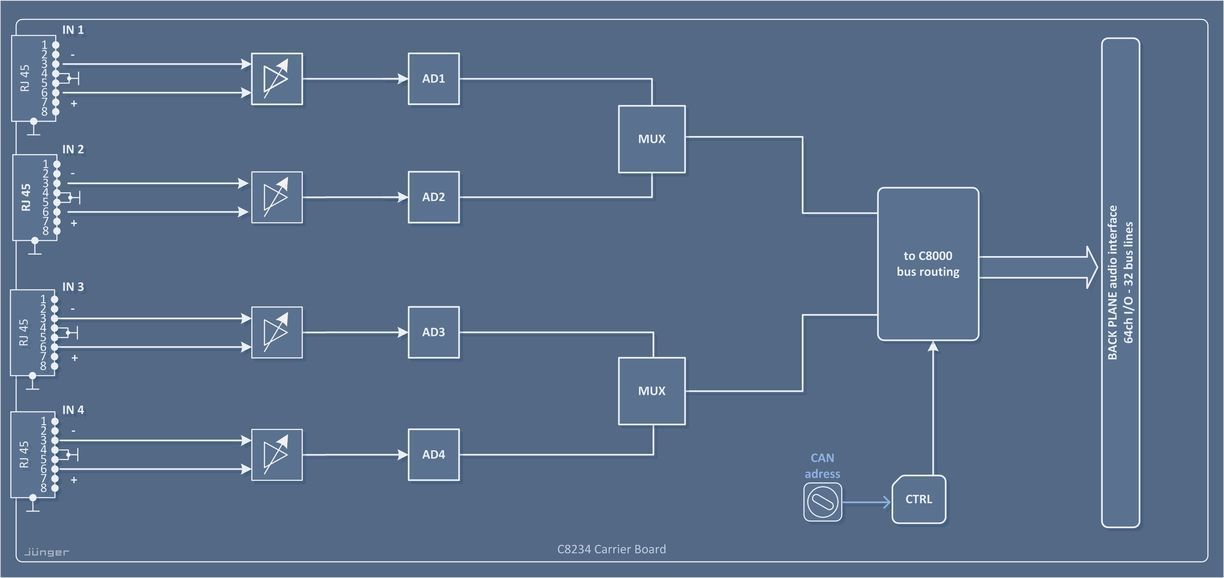

    C8234 - 4ch Mic-In Processing Block Diagram

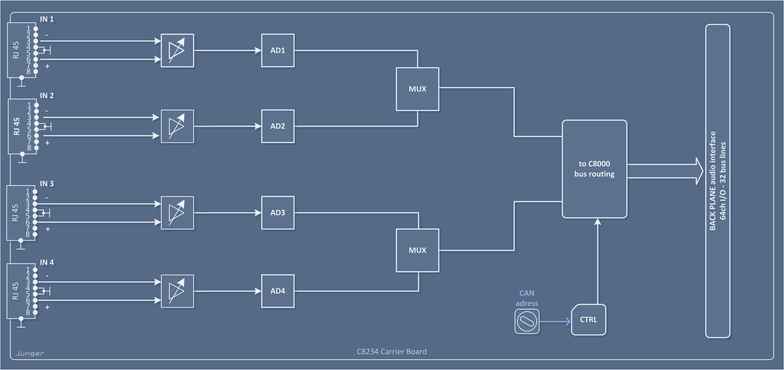

    C8234 - 4ch Mic-In Processing Block Diagram
    • 4 High Quality MIC / Line Inputs
    • 24bit A/D-Converter
    • 48V Phantom Power
    • Floating Balanced Analog Inputs
    • Digitally Controlled Gain 0..+65dB
    • Max. Line Input Level +20dBu
    • Pad Attenuation -10dB (Line)

    Manual
