Frame Controller

    Key Features

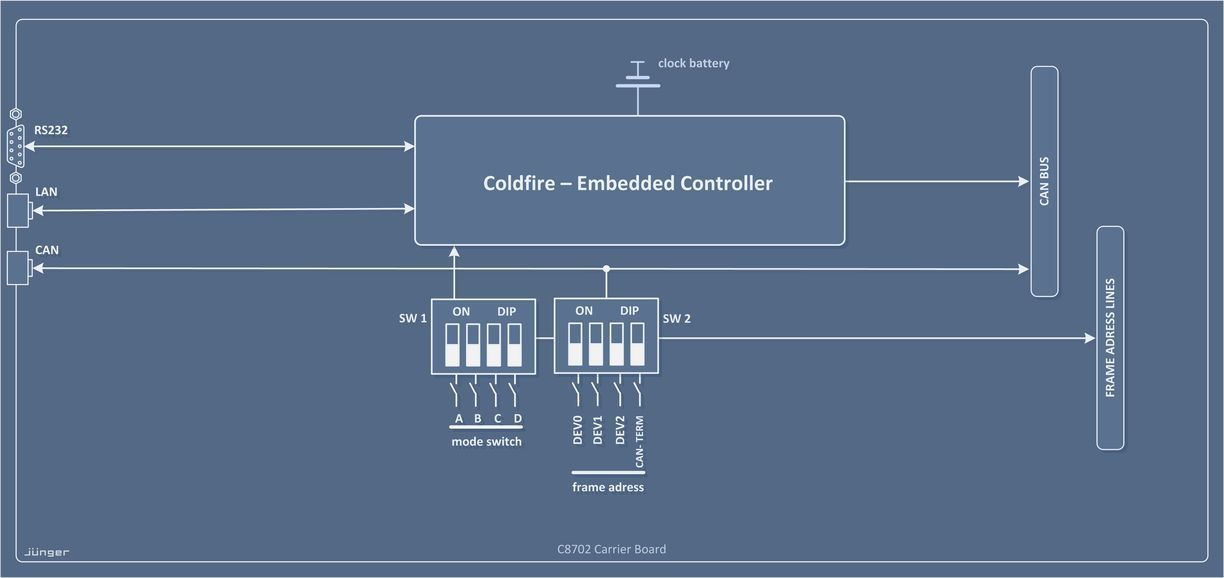

    C8702 – Frame Controller Processing Block Diagram
    C8702 – Frame Controller Processing Block Diagram
    • TCP/IP over Ethernet Interface for C8000 Frames
    • EmBER plus Protocol for 3rd Party Applications
    • Optional SNMP Agent
    • Web Interface for Set Up and Monitoring of C8000 Modules
    • Native CAN Bus Interface
    • Front Side RJ45 CAN Connector
    • Front Side 9-pin Serial (RS232) Service Connector
    • Front Side RJ45 Ethernet Connector
    • Front Side Status LED
    • Front Side INIT Button

    Versions & Options

    • L_C8702_SNMP License C8702 SNMP

    Manual

    Related Products

    • C8000 Frame 1RU C8912
      C8000 Frame 1RU
      • 19" / 1RU modular chassis, 240mm depth
      • Up to 3x 8HP or 6x 4HP space available (one side)
      • Front or rear rack mounting
      • Redundant internal power supplies, IEC sockets with mains filters
      product page
    • C8000 Frame 3RU 76HP C8922
      C8000 Frame 3RU 76HP
      • 19"/ 3RU modular chassis, 240mm depth
      • Up to 76HP space available (one side)
      • Single internal power supply, IEC socket with mains filter and power switch
      product page
    • C8000 Frame 3RU 76 + 72HP C8932
      C8000 Frame 3RU 76 + 72HP
      • 19" / 3RU modular chassis, 435mm depth
      • Up to 76HP (front) and 72HP (rear) space available
      • Dual internal power supplies, IEC sockets with mains filters and power switches
      product page
    • C8000 Frame 3RU 64/76; 4 independent sync areas C8934
      C8000 Frame 3RU 64/76; 4 independent sync areas
      • 4 independent bus-isolated backplane sections (each one with 8 slots back to back)
      • Local Audio Clock Distribution and Busses for each Section
      • Front & Rear Assembly (front-side: 64 HP; rear: 76 HP)
      • Redundant, Load Balanced Power Supplies with Individual Mains Input
      • 19" modular chassis, 3RU, 435mm depth
      product page
