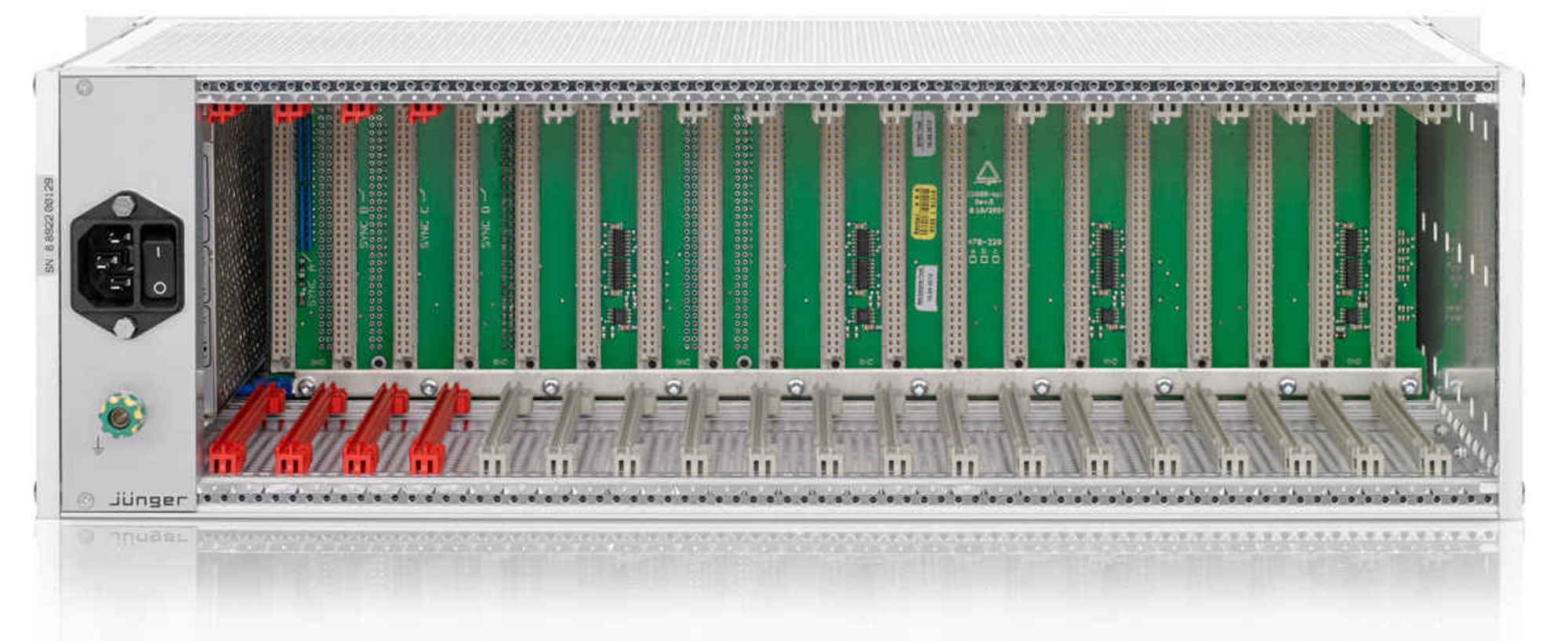

C8000 Frame 3RU 76HP

Key Features

• 19" / 3RU modular chassis, 240mm depth
• Up to 76HP space available (one side)
• Up to 19x C8000 processing, codec or interface modules
• Front rack mounting
• Single internal power supply, IEC socket with mains filter and power switch

Product Brief

• C8000 (PRODUCT BRIEF) download

Manual

• C8000 System - System Manual (MANUAL) download
