High Density System - COMPACT 64

Belonging to the High Density range of digital audio processors, the Compact 64 is aimed at broadcast playout facilities with a large number of TV channels that require efficient and transparent loudness management for the maximum number of audio channels within the minimum amount of rack space.

    For high volume loudness management of multiple TV channels where rack space is at a premium, Jünger Audio’s Compact range offers the most efficient ratio of DSP performance and throughput with the smallest footprint requirement. All current broadcast audio loudness standards are supported including ITU-R BS.1770 (1, 2 and 3) and recommended practices ATSC A/85 (2011/2013), ARIB TR-B32, Free TV OP-59, Portaria 354 and EBU R128.

    • Overview

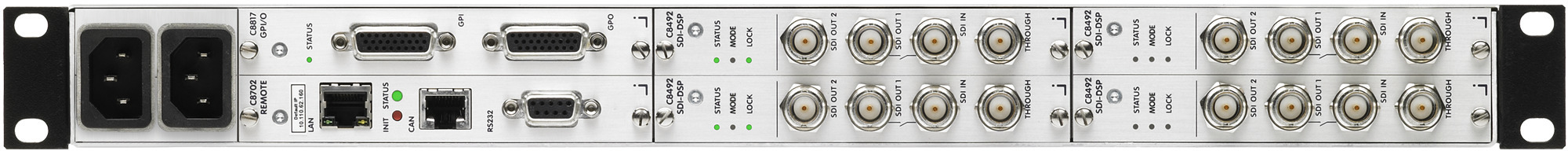

    The Compact 64 consists of a 1RU 19” frame pre-installed with a C8702 controller card. The optional C8492 cards provide a combination of SDI de-embedding/embedding, Level Magic loudness management along with dynamics processing and true peak limiting. Up to four C8492’s can be added to process a maximum of 4x SDI streams and up to 64 channels of audio.

    • C8492 SDI/DSP board

    At the heart of the Compact series is the C8492 processing card that contains the I/O functionality along with a powerful DSP that can provide loudness processing on up to 16 channels of audio within the SDI stream. In its standard form, the card is configured for four channel operation (2x2.0) with further licensing options available to increase this to eight or sixteen channels for multiple stereo and/or surround audio configurations. In surround mode, both automatic Upmix and Downmix are also included.

    • Level Magic and Dynamic Range Control

    Based on a unique multi-loop control principle, the Level Magic algorithm provides adaptive wideband loudness control with exceptionally high audio quality that is free of coloration, pumping, distortion or modulation effects. Level Magic combines three major gain changing elements:

    • • Adaptive AGC
    • • Transient Processor
    • • Distortion-free true peak limiter

    • The highly adaptive nature of the algorithm means that there are only a small number of settings that need to be entered by the user. The dynamics section comprises of an upward compressor that controls dynamic range but retains the micro dynamic structure, and an expander/gate to remove low-level noise without introducing artifacts.

    • Loudness Measurement and Logging

    To check compliance with local regulations, loudness and true peak levels can be measured and transferred via Ethernet to the optional J*AM measurement and logging software. SNMP or GPI/O alarms can also be triggered if pre-set limits are exceeded. A real-time plot of input v/s output levels can be displayed and the results logged to a destination folder anywhere on the network. A log file analyzer can rebuild the original plot for easy readout of historical measurements.

    • System Integration

    All system parameters are remotely accessible allowing the unit to be integrated and remotely operated by broadcast control systems. An advanced built-in Event Management tool allows the remote loading of parameter presets either by 8 GPI/O’s on the optional C8817 or by network commands using the Ember+TM control protocol. This helps users to apply individual processing to their programs, a key feature for well-managed loudness control to effectively accommodate compliant and none compliant audio.

    • Web Configuration

    A web interface allows easy and intuitive setup and configuration from anywhere in your network. Most parameters are based on the principle of “set and forget” so with a small number of initial settings, the unit can be up and running on air within minutes.

    • Interfaces and System Security

    Audio input for each C8491 is 3G/HD/SD-SDI with 2x SDI processed outputs including video delay, and a separate pass through of the unprocessed signal. A fail over function means that should the primary embedded audio channels be lost, the card can automatically revert to alternative audio channels instead. Power fail bypass relays are fitted as standard and with dual redundant PSU’s and SNMP integration, the unit ensures maximum operational safety and peace of mind for today’s critical 24/7 TV playout facilities.

    The heart of the COMPACT Solutions: C8492 SDI/DSP board - Feature Set
    The heart of the COMPACT Solutions: C8492 SDI/DSP board - Feature Set

    Key Features

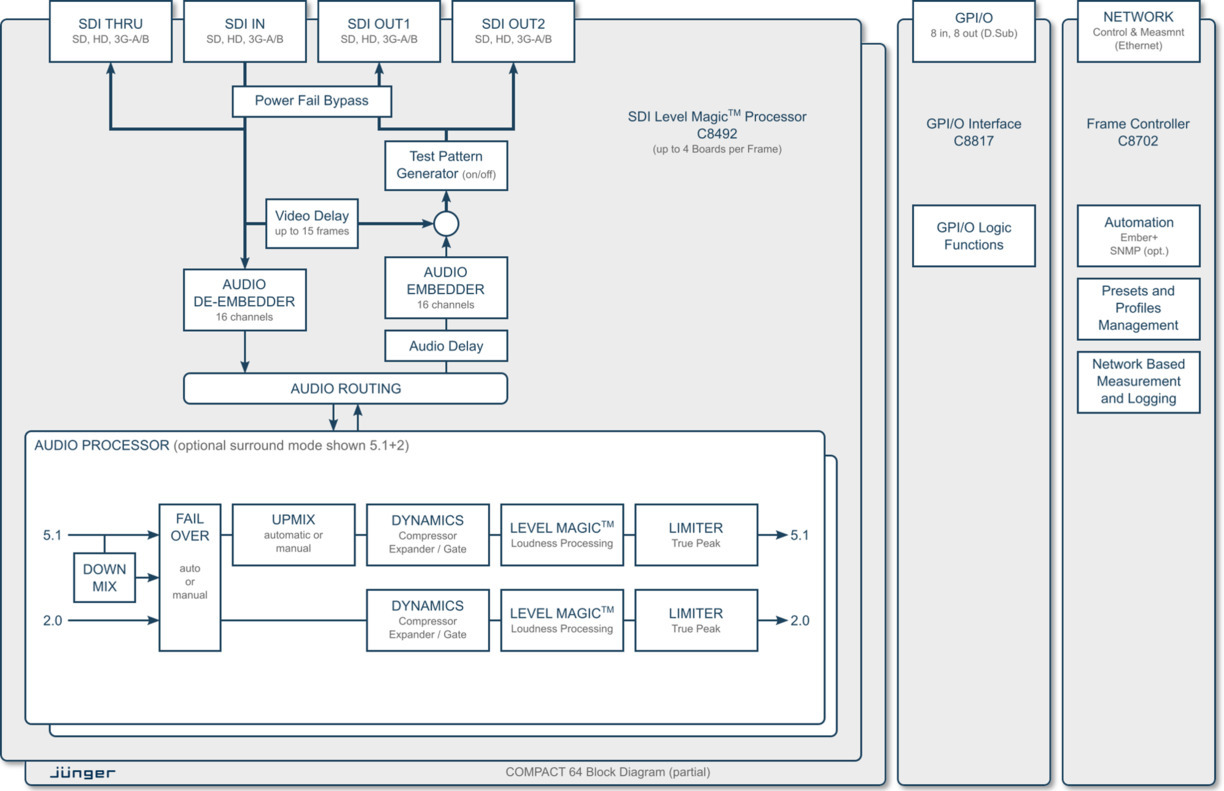

    COMPACT 64 - Processing Block Diagram
    COMPACT 64 - Processing Block Diagram
    • 19”/1RU frame, C8702 frame controller

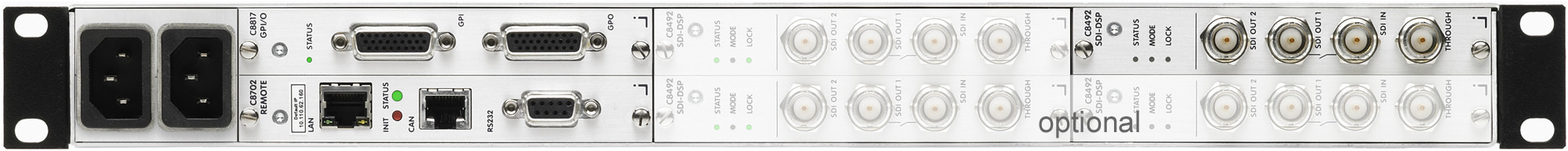

    • Space for 4 optional C8492 modules
    • Scalable design for up to 64 audio channels in up to 4 SDI streams
    • Level Magic loudness management according to: ITU-R BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
    • True peak limiter
    • Dynamics with downward compressor and expander/gate
    • Upmix and Downmix (only with surround upgrade licenses)
    • Fail Over
    • Optional loudness logging software (J*AM)
    • Power-fail bypass relays
    • Ethernet connectivity for set up and control via web browser
    • External control via network or GPI/O’s
    • Dual redundant PSU’s

    Versions & Options

    • Compact 64 – SDI Audio Processor for up to 4 SDI streams
    • Option Board C8492 SDI/DSP (max 4 total)
    • License C8492 upgrade to 8ch stereo (4x 2.0)
    • License C8492 upgrade to 16ch stereo (8x 2.0)
    • License C8492 upgrade to 8ch surround (5.1+2.0) or (4x2.0)
    • License C8492 upgrade to 16ch surround 2x [(5.1+2.0) or (4x2.0)]
    • Option Board C8817 GPI/O Module

    Applications

    All Jünger Loudness control / - Management devices from all product lines share a neat feature: The gathered measurement data is made available for downstream measurement applications via Ethernet. Learn more about at Measurement and Logging Software Tools.

    • Jünger Application Manager - J*AM
      System: MS Windows™
      download (ZIP, 23.4 MB)
      Changelog 2.10.19.42350 (2017-08-31):

      ATTENTION!

      Before installing the J*AM / Loudness Logger software under Windows 10, please download and install the latest Sentinel dongle GUI runtime environment:

      https://supportportal.thalesgroup.com/csm?sys_kb_id=61fb0ee1dbd2e78cfe0aff3dbf9619ab&id=kb_article_view&sysparm_rank=2&sysparm_tsqueryId=29c80d7b1bd49410f2888739cd4bcb91&sysparm_article=KB0018320

      Installing the J*AM / Loudness Logger software without the environment first might lead to critical errors and blues screens!

      Changes 2.10.19.42350:

      • Fixed integration range issue in Log Analyzer

      Changes 2.10.18.41937:

      • Fixed parameter inconsistencies occurred while network interruptions
      • Added support for C8492 PM5 and C8092 PM5
      • Added support for C8702 logger version 6

      Changes 2.10.10.40638:

      • Added support for V*AP v2.0.1

    Product Brief

    Manual

    Related Products

    • Frame Controller C8702
      Frame Controller
      • TCP/IP over Ethernet Interface for C8000 Frames
      • EmBER plus Protocol for 3rd Party Applications
      • Optional SNMP Agent
      product page
    • GPI/O interface C8817
      GPI/O interface
      • 127 virtual and 8 physical GPIs
      • 127 virtual and 8 physical GPOs
      • GPOs generated by logical expressions
      product page
    • High Density Board C8492 C8492
      High Density Board C8492
      • SDI (3G/HD/SD) embedder and deembedder for 16 audio channels
      • Level Magic loudness management for up to 16ch according to: ITU-BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
      • Stressless processing of unlocked SDI streams
      product page

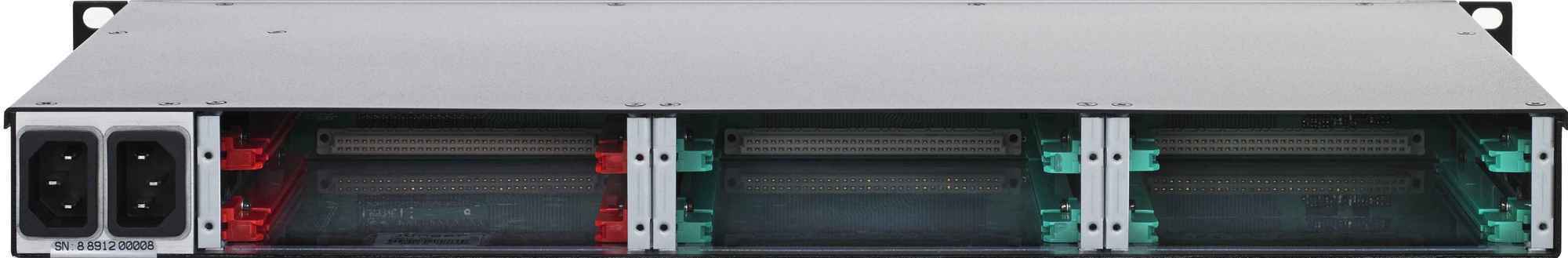

    • C8000 Frame 1RU C8912
