High Density Board C8492

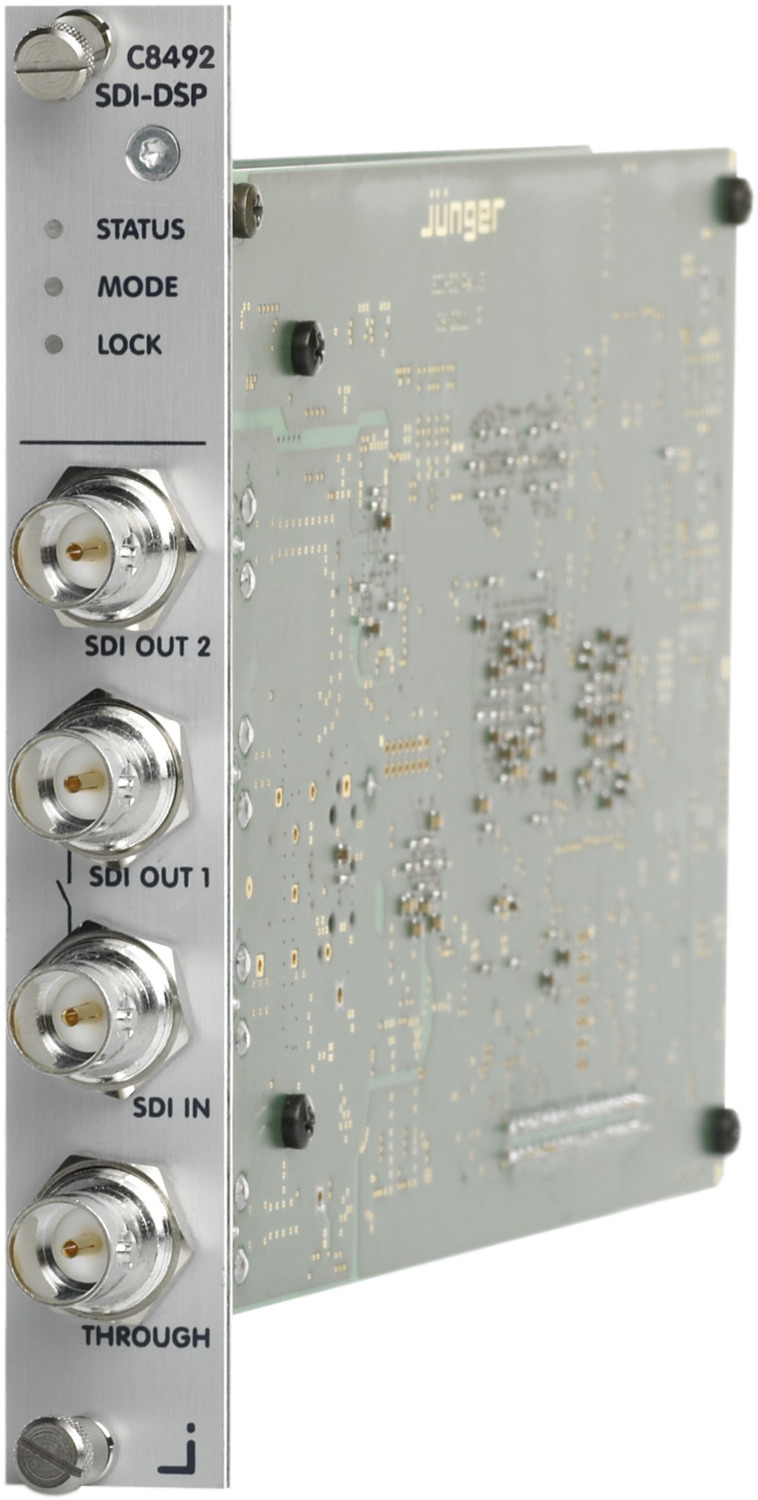

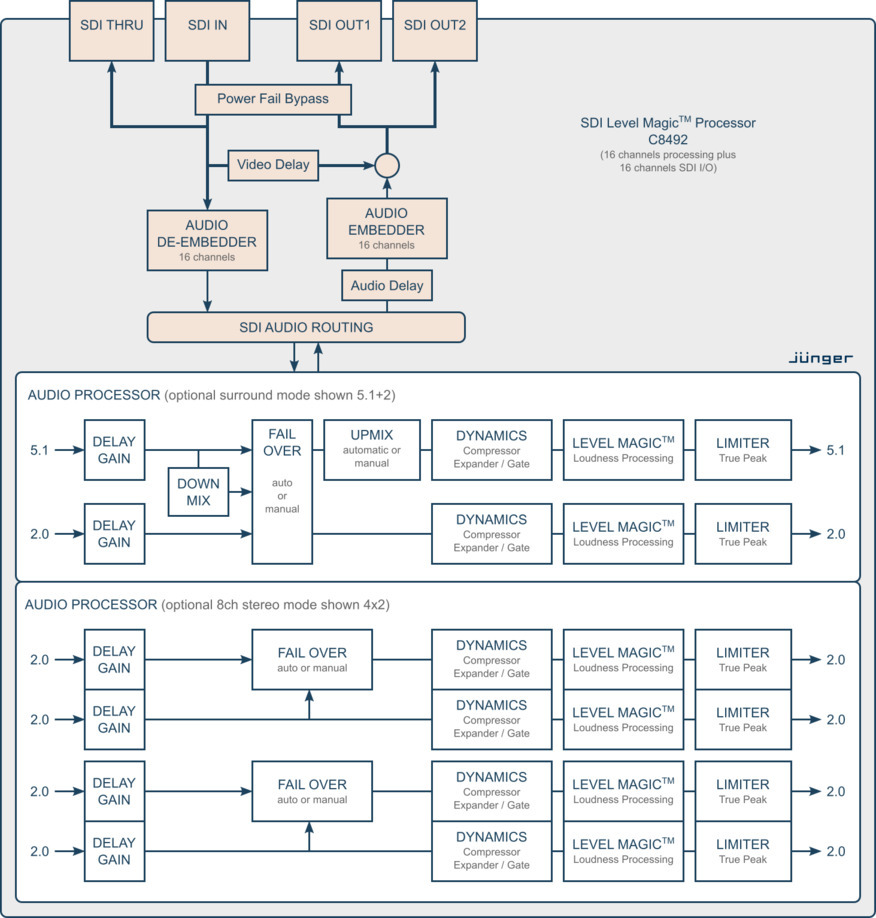

The heart for all high density systems is the C8492 SDI/DSP board. It combines SDI embedding and deembedding capabilities with DSP processing functionality in one single module.
This module combines powerful compact processing with an efficiency and flexibility never seen before. Designed for extreme compact multi-stream systems these modules will add the following features in one single module:
Key Features
- SDI (3G/HD/SD) embedder and deembedder for 16 audio channels
- Level Magic loudness management for up to 16ch according to: ITU-BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
- Stressless processing of unlocked SDI streams
More Features:
- Surround upmix functionality
- Dynamics with compressor and expander/gate
- Power-fail bypass relays for SDI signal
- Up to 4 modules in one 1RU frame
- Up to 16 modules in one 3RU frame
Versions & Options
- Upgrade to 8ch, (4x 2.0) audio processing
- Upgrade to 16ch, (8x 2.0) audio processing
- Upgrade to 8ch, (5.1+2.0) or (4x 2.0), mixed mode stereo and surround/upmix
- Upgrade to 16ch, 2x [(5.1+2.0) or (4x 2.0)], mixed mode stereo and surround/upmix
