C8000 – Modular Audio Processing and Interface System

The concept behind the C8000 modular system is total flexibility and adaptability for all digital audio processing applications. Choose a frame and then select only the modules with the required functionality to create a truly bespoke system.

  • C8000 - Feature Set
    C8000 - Feature Set
    • 19” frame based fully modular system (1Ru or 3RU frames)
    • Wide range of audio processing functionality
    • Extensive support for Dolby® decoding and encoding
    • SDI interface for embedding/de-embedding of audio, Metadata transport and lip sync control
    • Network based automation, control, management and measurement
    product page

C8000 Frames

This section provides information about the system frames available. These frame differentiate in their physical and logical capacity.

All frames are 19” based on the DIN 41494 standard and include 1RU and 3Ru options with card installation from the front, rear or both, providing up to 76HP of card capacity. Audio transport is via up to four independently isolated backplane busses. Construction is from all aluminium side panels and cross members with 0.8mm steel covers for effective RF screening.

  • C8000 Frame 1RU

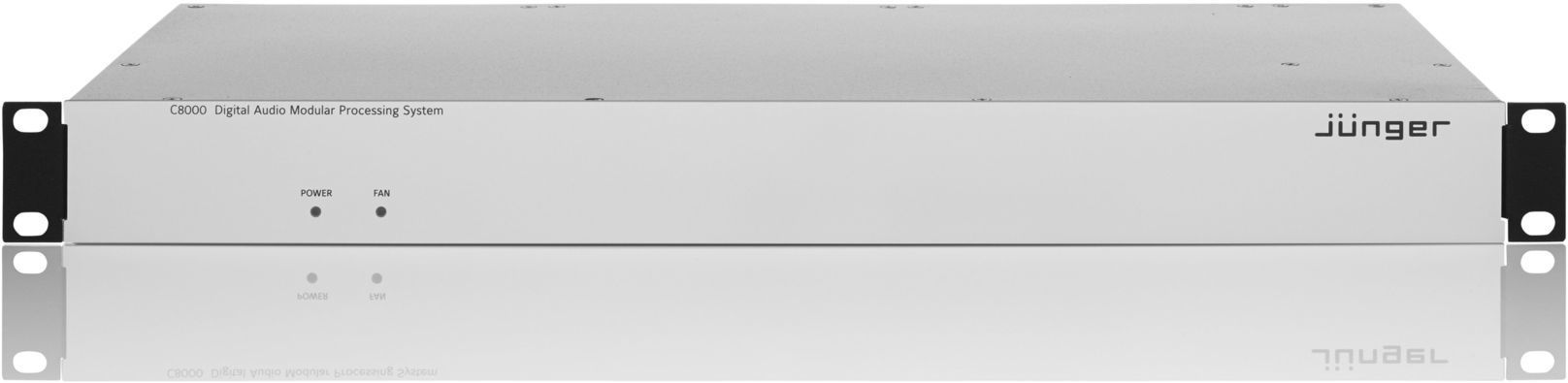

    C8912 C8000 Frame 1RU
    • 19" / 1RU Modular Chassis, 240mm depth
    • up to 3x 8HP or 6x 4HP space available
    • Front or Rear Assembly (3x 8HP or 6x 4H
    • Redundant Power Supplies
    product page
  • C8000 Frame 3RU/76

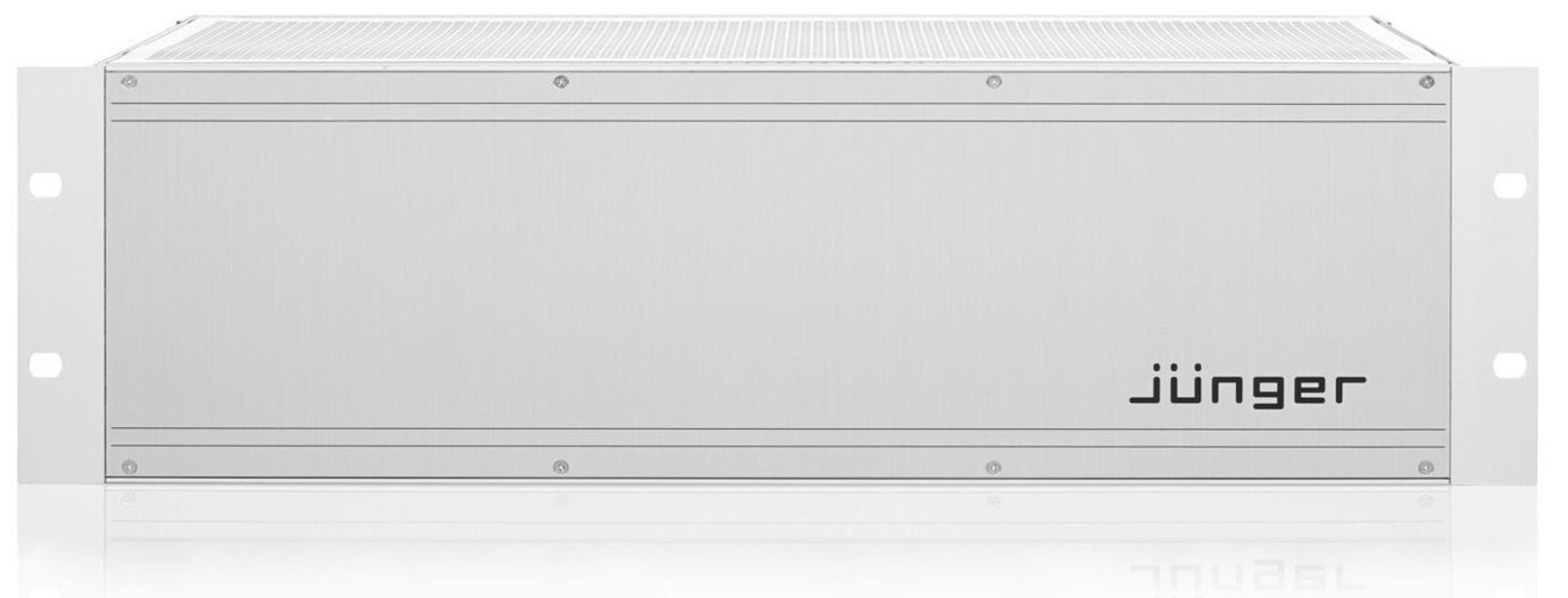

    C8922 C8000 Frame 3RU/76
    • 19" modular chassis, 3RU, 240mm depth
    • One Side Assembly (front or rear), 76HP
    • One Internal Power Supply, appliance socket with mains filter and switch
    product page
  • C8000 Frame 3RU 76+64

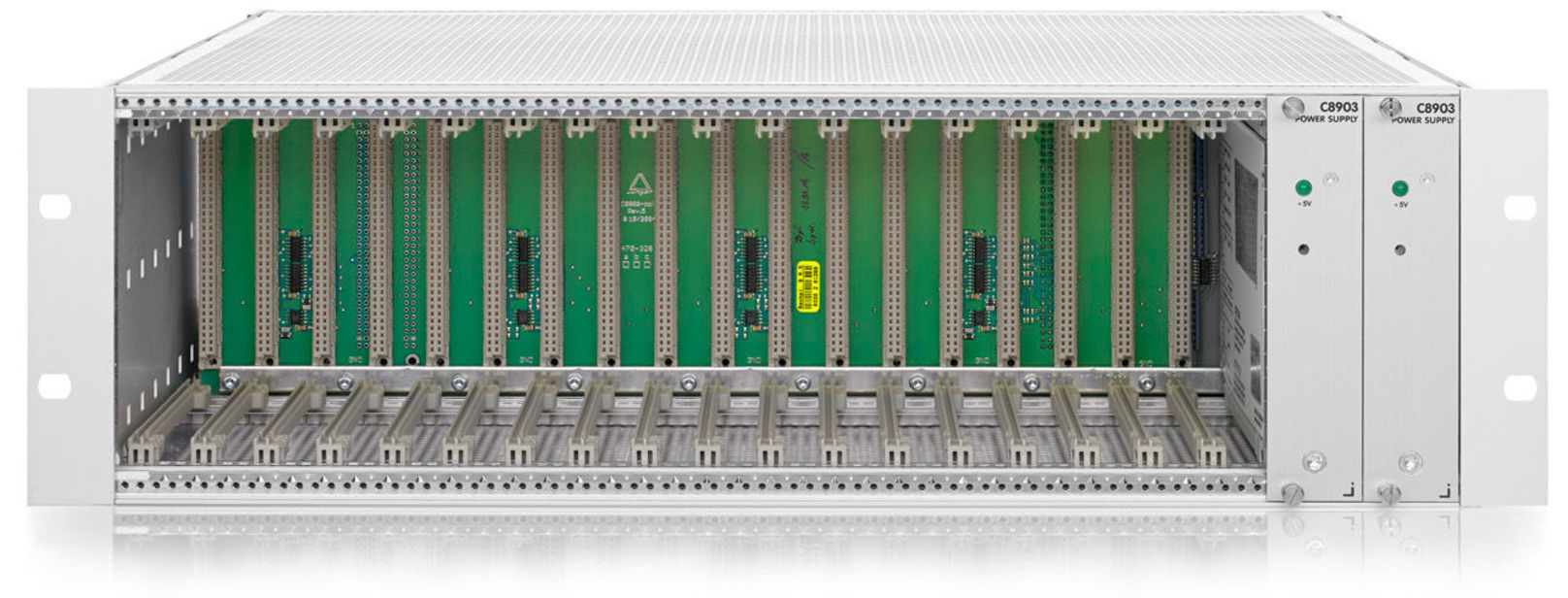

    C8932 C8000 Frame 3RU 76+64
    • 19" modular chassis, 3RU, 435mm depth
    • Redundant, Load Balanced Power Supplies with Individual Mains Input
    • Front & Rear Assembly (front-side: 64 HP; rear: 76 HP)
    product page
  • C8000 Frame 3RU 64/76; 4 independent sync areas

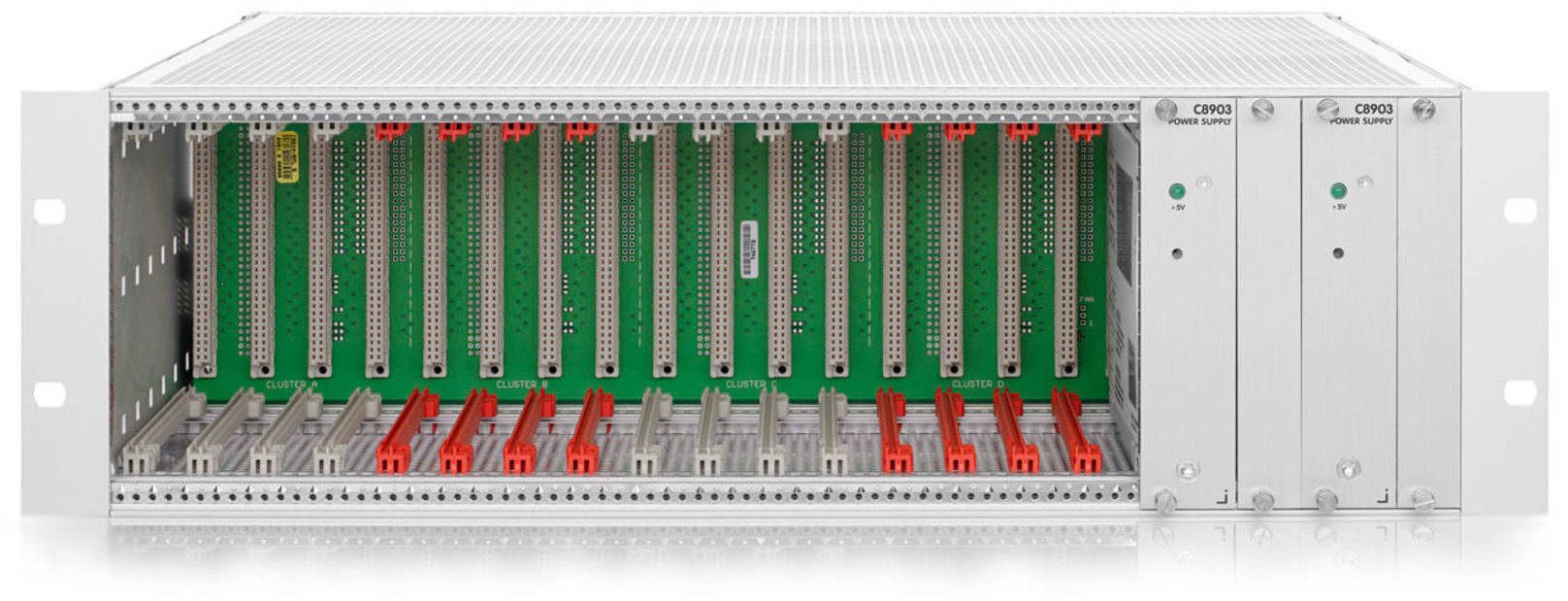

    C8934 C8000 Frame 3RU 64/76; 4 independent sync areas
    • 4 independent bus-isolated backplane sections (each one with 8 slots back to back)
    • Local Audio Clock Distribution and Busses for each Section
    • Front & Rear Assembly (front-side: 64 HP; rear: 76 HP)
    • Redundant, Load Balanced Power Supplies with Individual Mains Input
    • 19" modular chassis, 3RU, 435mm depth
    product page

Control & Sync

This section provides information about vital system elements to syncronize the system or to establish network connectivity for a web based configuration tool.

SDI Interfacing Applications

This MODULAR LINE’s SDI Interface board allows you to access and to modify all embedded audio channels on a SDI stream. It supports e.g. SDI (3G/HD/SD) - Embedding / deembedding, SDI audio group handling, Video delay to compensate audio processing latency and VANC metadata handling.

Audio Processing Applications

The modular line’s audio DSP boards offer individual audio processing solutions for al kinds of applications like - Loudness processing - Fail over / voice over - Upmix / downmix - Mixing - Delay

Analog & Digital Audio Interfacing Applications

The modular line’s audio analog and digital audio interface boards gives you a free choice of I/O configurations to meet your individual requirement. - Analog audio interfaces - Digital audio interfaces - Micophone interfaces - MADI interfaces

Dolby® Applications

The modular line’s Dolby® processing boards offer encoding and decoding capabilities for the following Dolby® formats: • Dolby® E • Dolby® D • Dolby® D+ • Dolby® Pro Logic II
