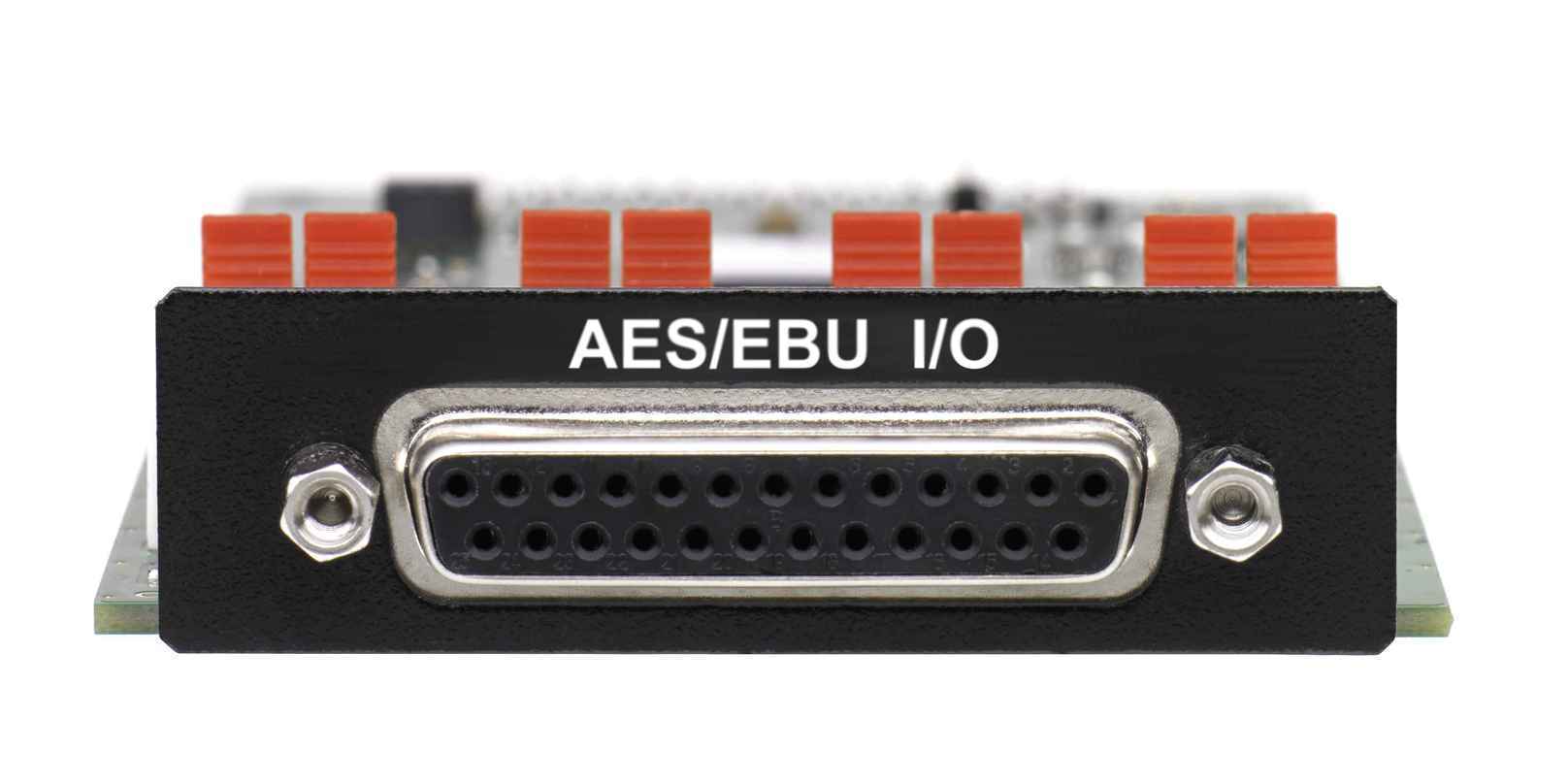

Option Board 8ch AES/EBU I/O

The Option Board 8ch AES/EBU I/O is an I/O - accessory module designed for the SLIM LINE processing platforms - providing 4x AES EBU (8ch) I/O on a D-SUB25 connector.

Option Board 8ch AES/EBU I/O

Key Features

  • 25pin Sub-D female Connector
  • 110 Ohm balanced or 75 Ohm unbalanced I/O
  • 24 Bit, input sample rate 32 kHz … 192 kHz, THD+N < -130 dB @ 0 dBFS
  • power fail bypass relay

Versions & Options

  • D*AP4 hardware platform: one option slot available for this option board
  • D*AP8 hardware platform: two option slots available for this option board
  • This option board is available for all products listed in Accessories below this page.
