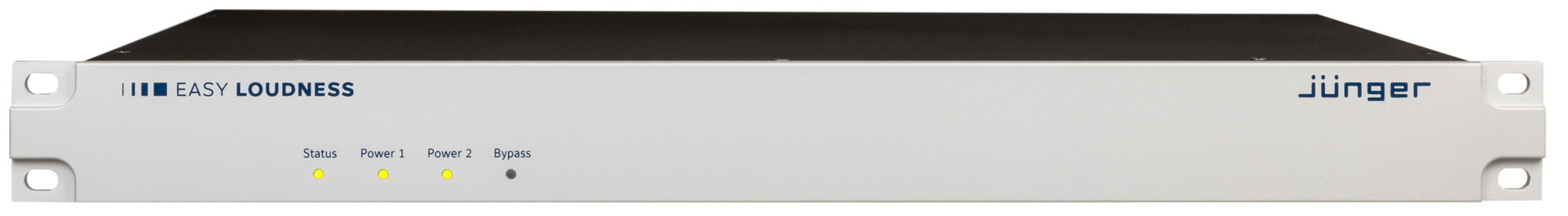

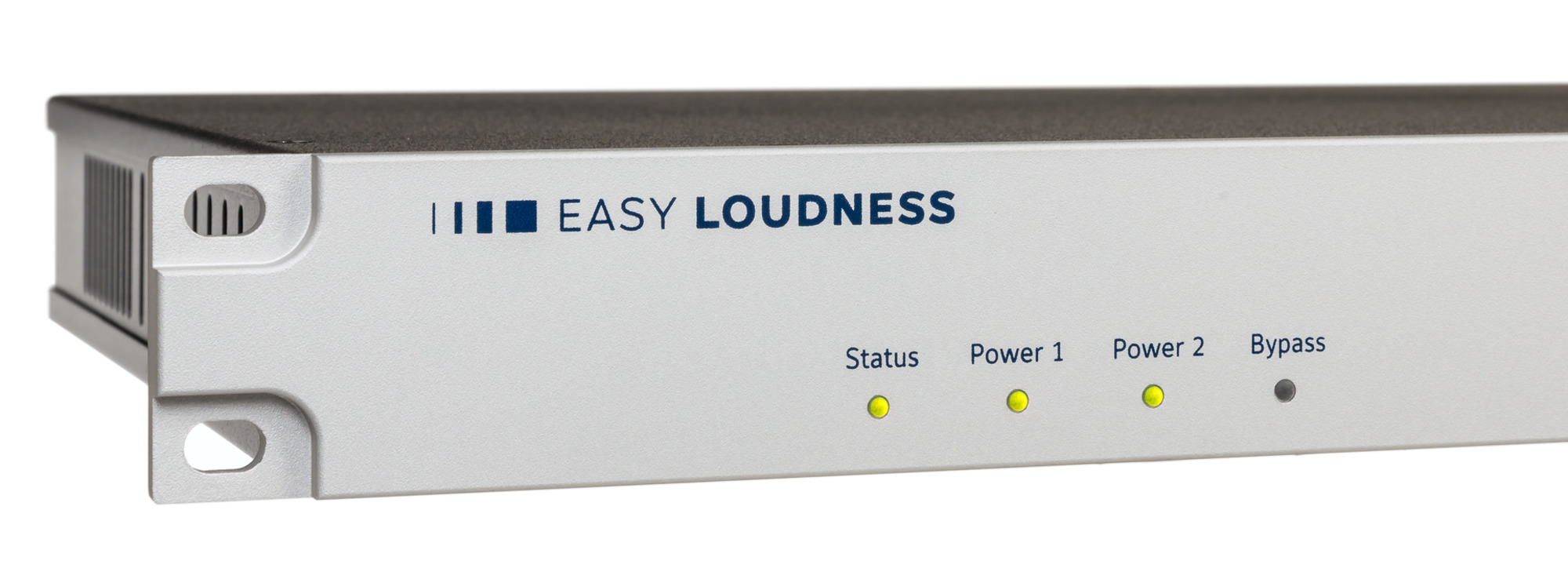

Dual Stereo Level Magic™ Audio Processor - EASY LOUDNESS SDI

With dual stereo processing channels, integrated 3G SDI and optional logging features EASY LOUDNESS SDI is the ideal solution for automatic and intelligent real-time loudness management. Jünger Audio’s integrated Level Magic™ process ensures maximum audio quality and compliance with all worldwide loudness standards.

    Overview

    Ideally suited for stereo broadcast and production, the EASY LOUDNESS SDI audio processor is designed to ensure that audio levels and loudness are automatically kept under control – from program to program and day to day.

    Featuring comprehensive Level Magic™ loudness control, fail over switching and true peak limiting for two independent stereo programs, sourced from SDI or AES.

    Level Magic™

    Based on a unique multi-loop control principle, the Level Magic™ algorithm provides adaptive wideband loudness control with exceptionally high audio quality, without coloration, pumping, distortion or other modulation effects. Level Magic™ is designed to be audibly transparent and process adaptively with minimal user interaction. Level Magic™ is compliant with all current broadcast audio loudness recommendations based on the ITU-R BS.1770 standard as well as the derived recommended practices ATSC A/85, ARIB TR-B32, Free TV OP-59, Portaria 354, EBU R128 and more.

    Loudness Measurement and Logging

    For compliance with local regulations, loudness and true peak levels can be measured and monitored directly from the web browser interface. Simultaneously all data is transmitted via Ethernet to the J*AM measurement and logging software (license option), providing comprehensive file logging, live monitoring and offline analysis.

    Fail Over

    With its integrated fail over system, EASY LOUDNESS SDI is able to switch to a backup signal path, in case the main feed gets lost. The AES stereo input can be used as a fallback input if the SDI signal is interrupted.

    Easy Web Configuration

    Enabling easy and intuitive setup and configuration from anywhere in your network, a browser-based web interface with a newly designed ‘home’ page allows for fast set-once-and-forget operation. Onscreen metering and measurements are available for easy reference and a dedicated ‘Mobile UI’ is tailored specifically for touch-screen, tablet and smartphone access.

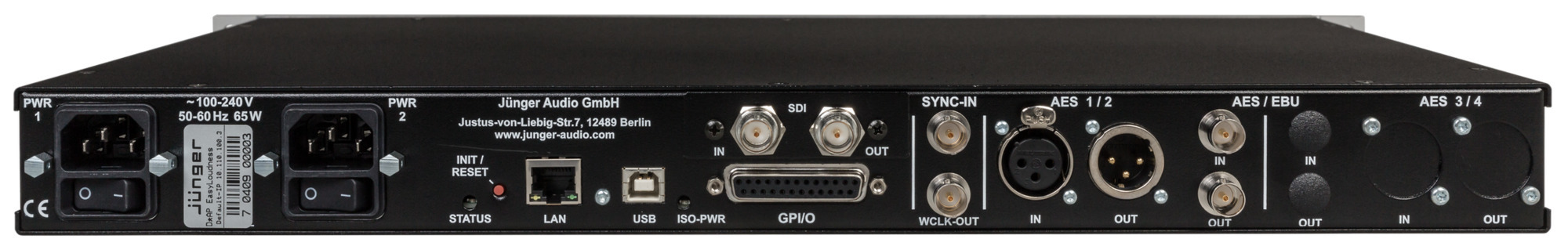

    Physical Interfaces

    EASY LOUDNESS SDI is fitted with a 3G/HD/SD SDI interface featuring video and audio delays, intelligent routing options, a test generator and full de-embedding and embedding of up to 16 audio channels. Additionally a stereo AES interface with physical XLR and BNC (AES3id) connectors is installed.

    System Security

    With dual redundant PSUs, automatic sync source switching, power fail bypass relays (audio and video) and SNMP monitoring, the unit ensures maximum operational safety.

    System Integration All system parameters can be remote controlled via Ember+™ control protocol enabling any broadcast automation system to fully operate and virtualize the device. A Snapshot functionality was developed for simple and easy loading of presets by GPI, network or physical Hotkeys (optional X*AP RM1).

    Easy Loudness SDI Feature Set

    Key Features:

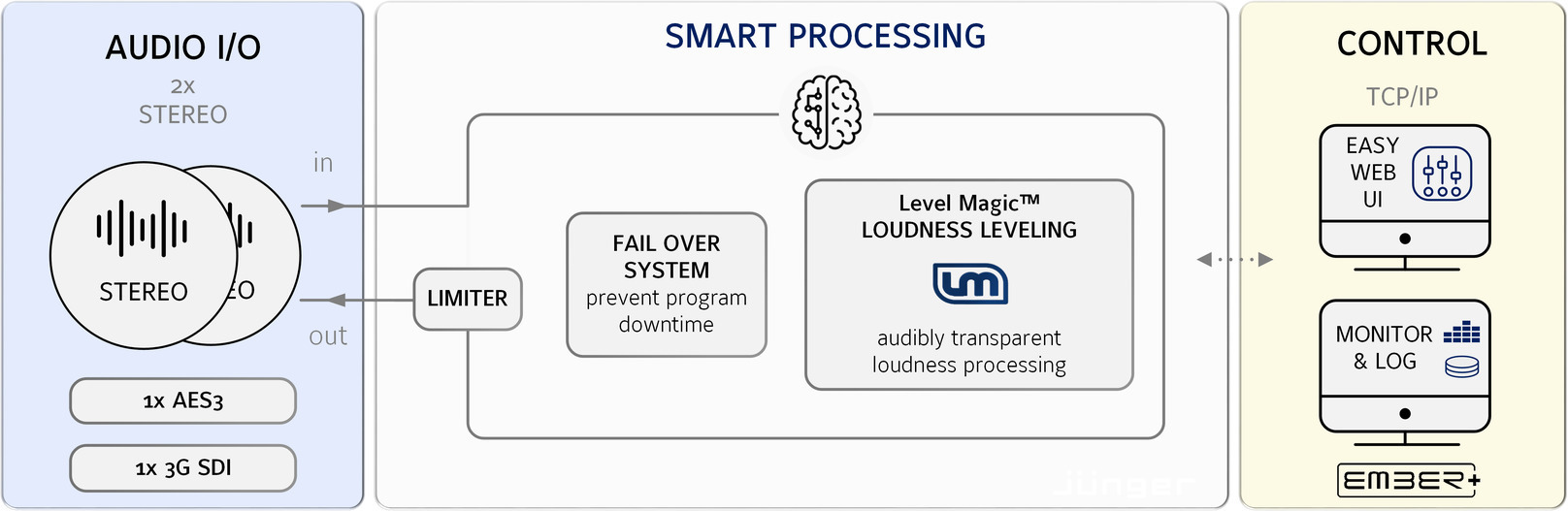

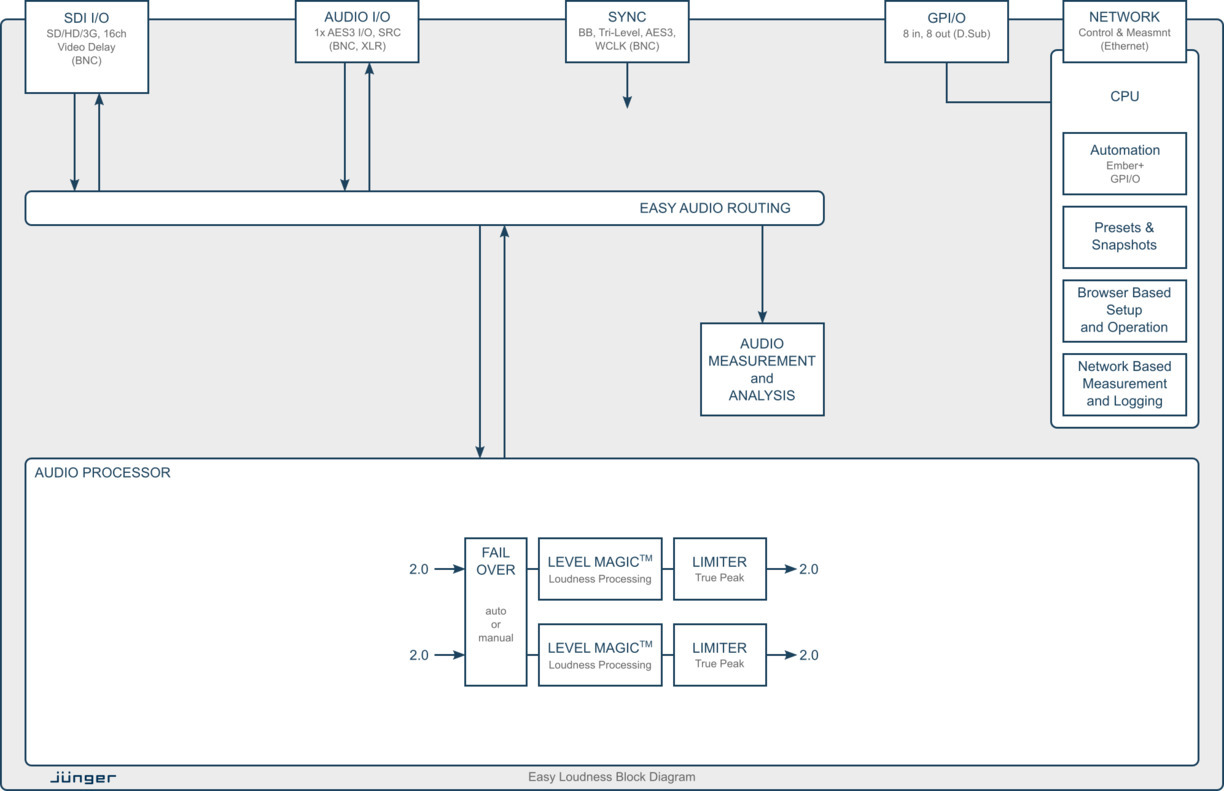

    Easy Loudness Processing Block Diagram
    Easy Loudness Processing Block Diagram
    • Level Magic™ loudness management according to: ITU-R BS.1770 (all revisions), EBU R128, ATSC A/85, ARIB TR-B32, Free TV OP-59 and Portaria 354
    • Loudness measurement supporting all worldwide standards
    • True peak limiter
    • Dual stereo audio processing
    • Fail Over with signal loss detection
    • On board interface: 1x AES/EBU I/O (XLR & BNC), 1x SDI I/O (3G/HD/SD), Sync in, Sync out, 8 GPI/O
    • Easy Web Configuration
    • Optional loudness logging software (J*AM)
    • Ethernet connectivity for set up and control via web browser
    • External control via network or GPI/O’s
    • Power-fail bypass relays
    • 19”, 1RU device, redundant PSU

    Versions & Options

    • X*AP RM1: hardware remote control linked via Ethernet

    Applications

    • Jünger Application Manager - J*AM
      System: MS Windows™
      download (ZIP, 23.4 MB)
      Changelog 2.10.19.42350 (2017-08-31):

      Changes 2.10.19.42350:

      • Fixed integration range issue in Log Analyzer

      Changes 2.10.18.41937:

      • Fixed parameter inconsistencies occurred while network interruptions
      • Added support for C8492 PM5 and C8092 PM5
      • Added support for C8702 logger version 6

      Changes 2.10.10.40638:

      • Added support for V*AP v2.0.1

    Product Brief

    Related Products

    • Universal Remote Control Panel X*AP RM1 X*AP RM1

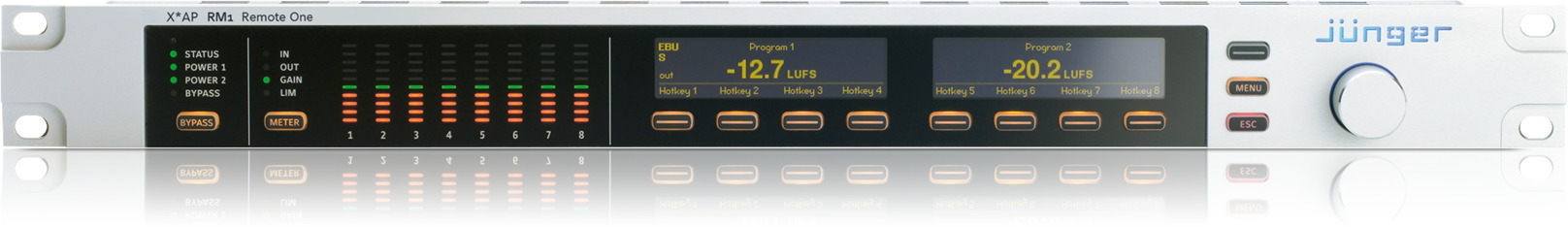

      Universal Remote Control Panel X*AP RM1
      • Controls any Jünger Audio Slim Line product
      • 8 channel multicolor LED bargraph
      • 2 high resolution graphic displays (OLED)
      • 8 user configurable hotkeys
      • DC powered
      product page
    • Jünger Application Manager - J*AM J*AM
      Jünger Application Manager - J*AM
      • Manages free or license-based applications for connected devices
      • Loudness measurement according to: EBU R128, ITU BS.1770 (all versions), ATSC A/85 and ARIB TR-B32, Free TV OP-59 and Portaria 354
      • Real-time metering of processing parameters, including true peak measurement
      • MS Windows™ XP (or later) PC with USB port and network interface required
      • Recommended hardware: J*AM is running on: Intel AtomN330 1.6GHz, 2GB RAM, 250GB HDD, Nvidia ION, Win 7
      product page
    • License package J*AM - LoudnessLogger™ LoudnessLogger™
      License package J*AM - LoudnessLogger™
      • Network enabled real-time measurement
      • Loudness measurement according to: EBU R128, ITU BS.1770 (all versions), ATSC A/85 and ARIB TR-B32, Free TV OP-59 and Portaria 354
      • Real-time metering of processing parameters, including true peak measurement
      • Long-term loudness logging (infinite, restricted by storage space only)
      • Off-line analysis of measurement data
      product page
