MADI I/O (SC, optical)

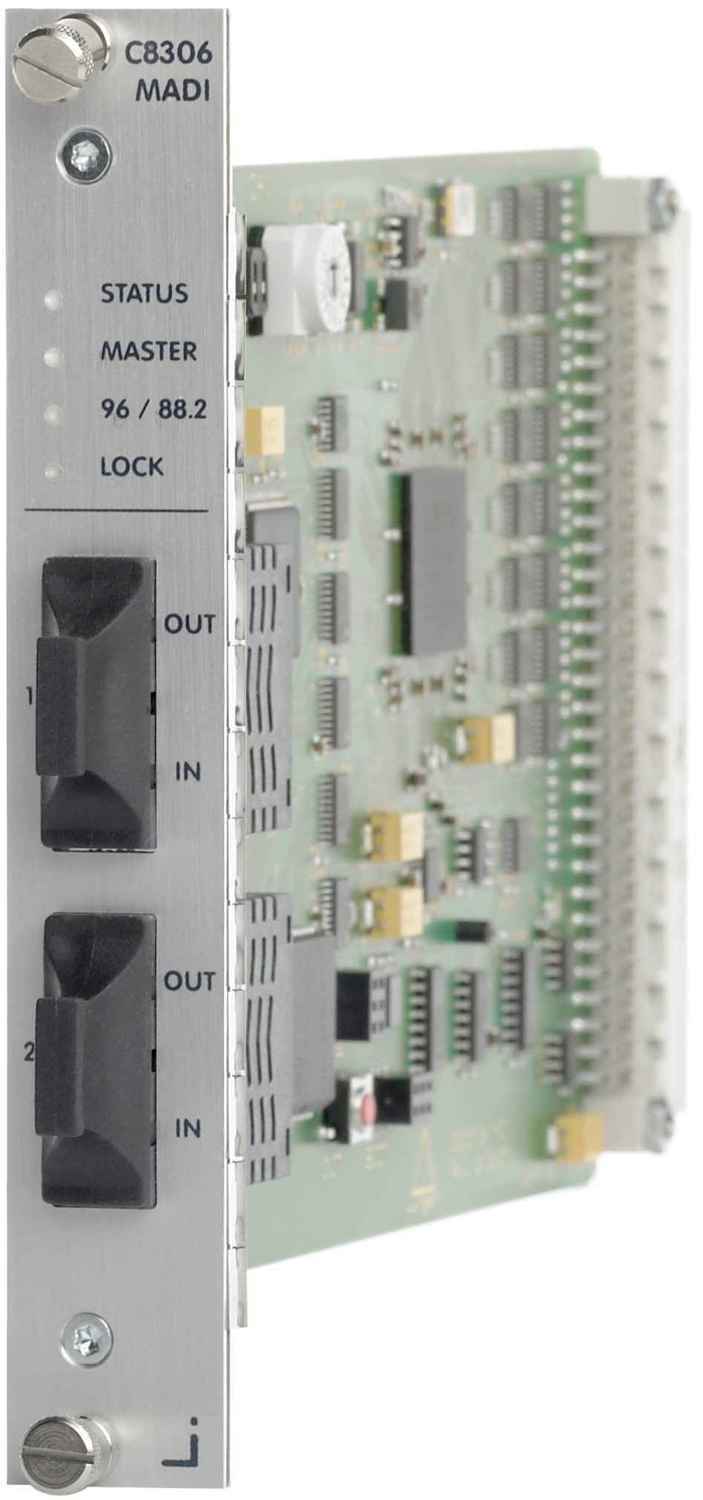

The C8306 is an I/O module designed for the C8000 modular processing solution providing MADI (AES 10) optical connectivity.

    The C8306 MADI I/O module may link up to 64 audio channels between stage boxes, mixers, or matrices to or from the C8000 frames.

    C8306 is a MADI I/O module with optical interface on SC connectors.

    The MADI I/O is a perfect multichannel audio link to integrate C8000 modular processing with 3rd party audio systems such as routing systems to make indivitual processing features provided by processing modules available to such systems.

    This solution is also used for live recording (music, TV, radio) where multiple mic board (C8234) are provided in stage boxes and a multi channel signal linking to audio mixing and/or recording systems.

    The optical module is available in singlemode and multimode versions.

    C8306 is an I/O module designed for the C8000 modular system .

    Configuration and operation are performed via web interface. Remote control via GPI or through 3rd Party Devices (through open Ember protocol).

    Key Features:

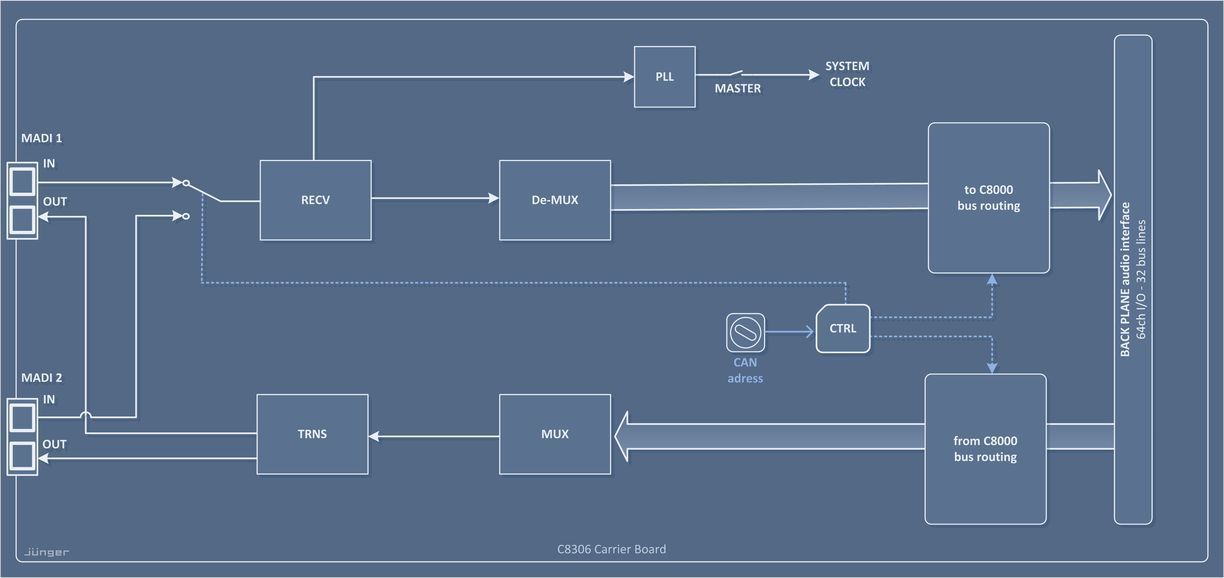

    C8306 – MADI I/O (SC, optical) Processing Block Diagram
    C8306 – MADI I/O (SC, optical) Processing Block Diagram
    • MADI Digital Audio
    • Reference grade word clock recovery from MADI
    • Singlemode and Multimode versions available
    • 56 and 64 channel formats
