Analog I/O XLR

The C8220 is an I/O module designed for the C8000 modular processing solution providing 2 analog inputs and 2 analog outputs on XLR connectors.

    Key Features:

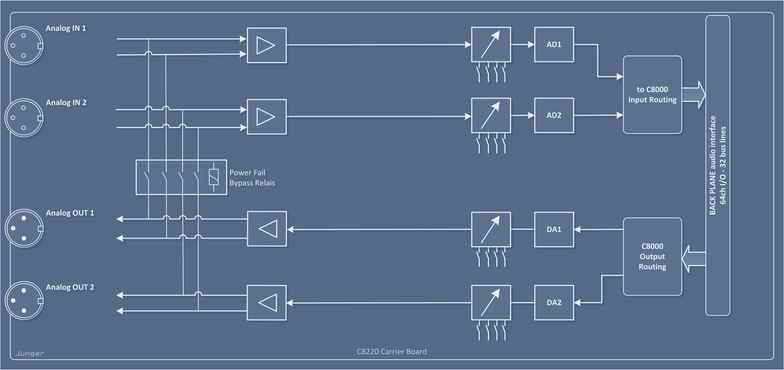

    C8220 – 2ch Analog I/O (XLR) Processing Block Diagram
    C8220 – 2ch Analog I/O (XLR) Processing Block Diagram
    • Analog Audio
    • 2 Channel In
    • 2 Channel Out
    • XLR

    Manual
