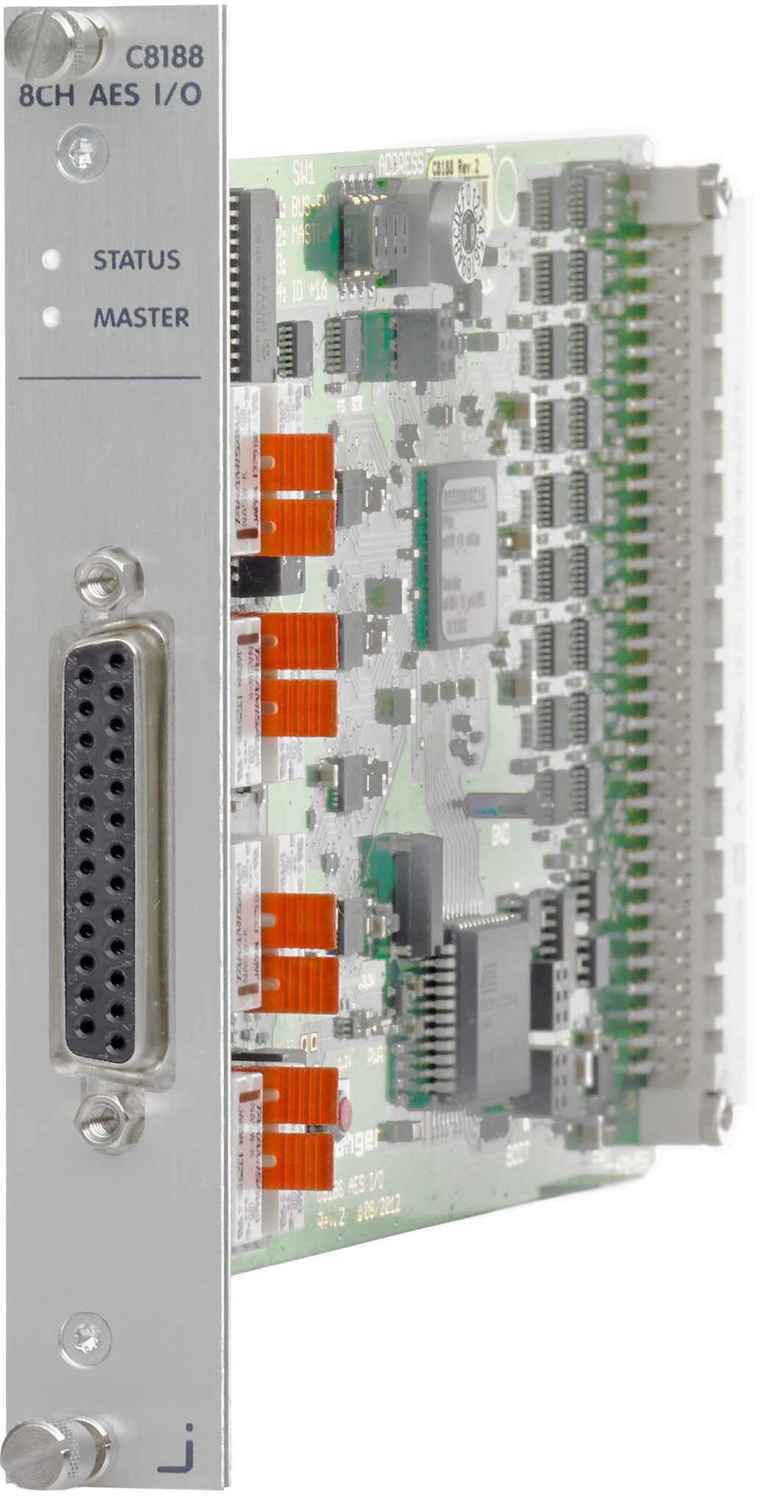

AES/EBU (D-SUB25)

The C8188 is an I/O module designed for the C8000 modular processing solution providing 4x AES EBU (8ch) I/O on a D-SUB25 connector.

    Key Features:

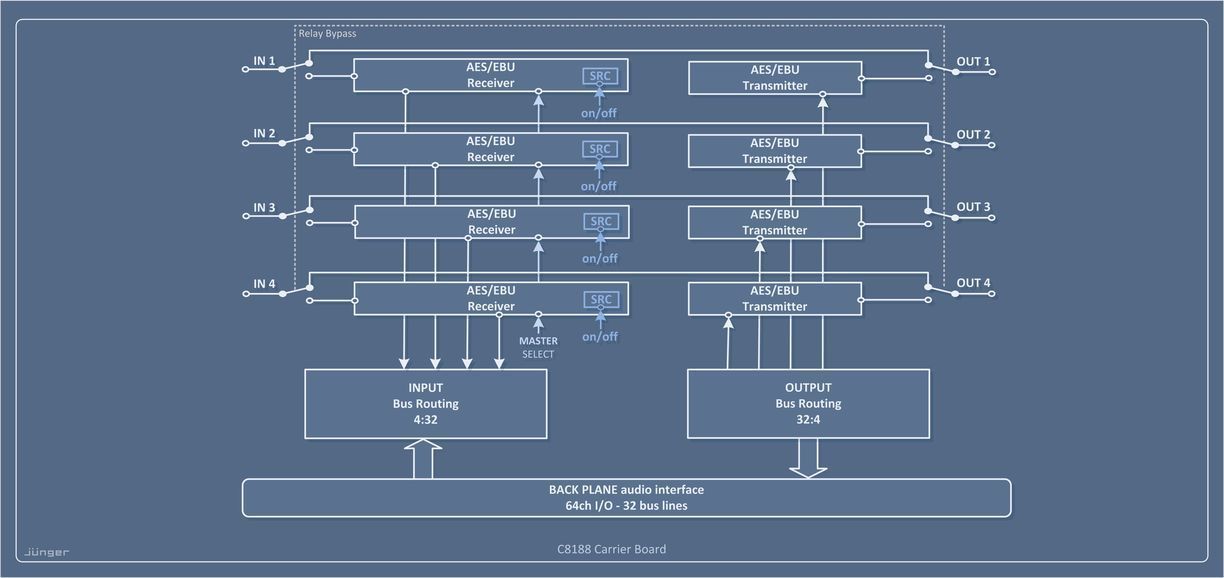

    C8188 AES/EBU (D-SUB25) Processing Block Diagram
    C8188 AES/EBU (D-SUB25) Processing Block Diagram
    • AES/EBU Digital Audio
    • 4x AES (stereo or 2ch) In
    • 4x AES (stereo or 2ch) Out
    • D-SUB25 Connector

    Product Brief

    Manual
